์ ํ์๊ฐ

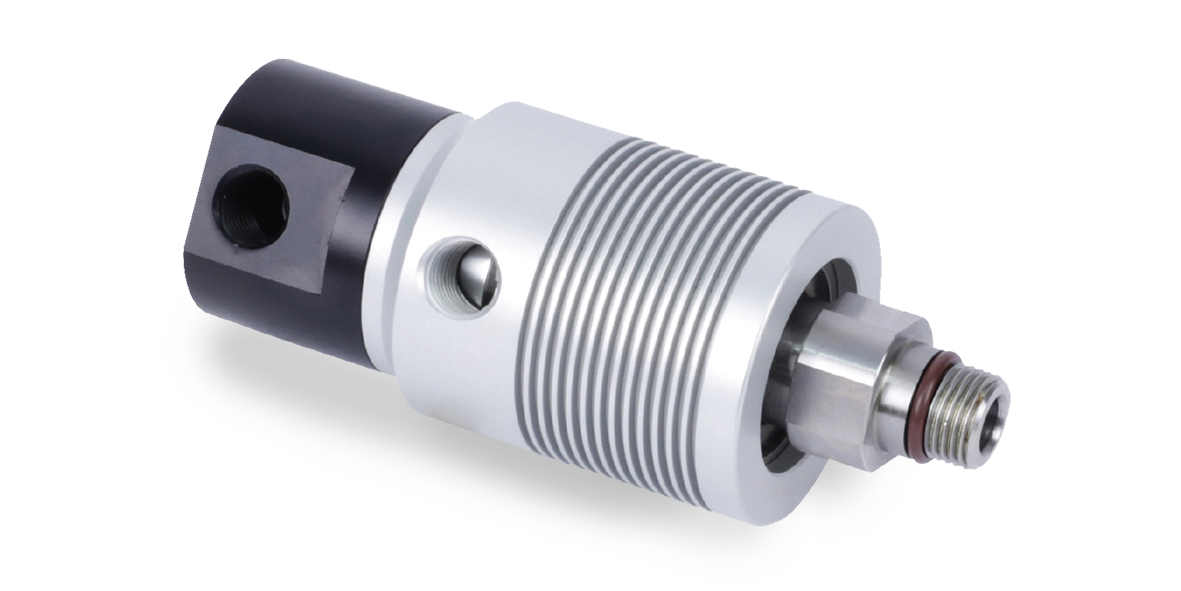

01 SERIES
STANDARD HIGH-PERFORMANCE
SRJ 01-201
์ ํ ํน์ง
Operating Data
๊ตฌ๋ถ | ๋ด์ฉ |
|---|---|
Max. Pressure | 100 bar |
Max. Speed | 20,000 RPM |
Max.Temperature | 70โ |
Max.Flow | 80 L/min |
์ ํ ์ ๋ณด
์ ํ ์ ๋ณด

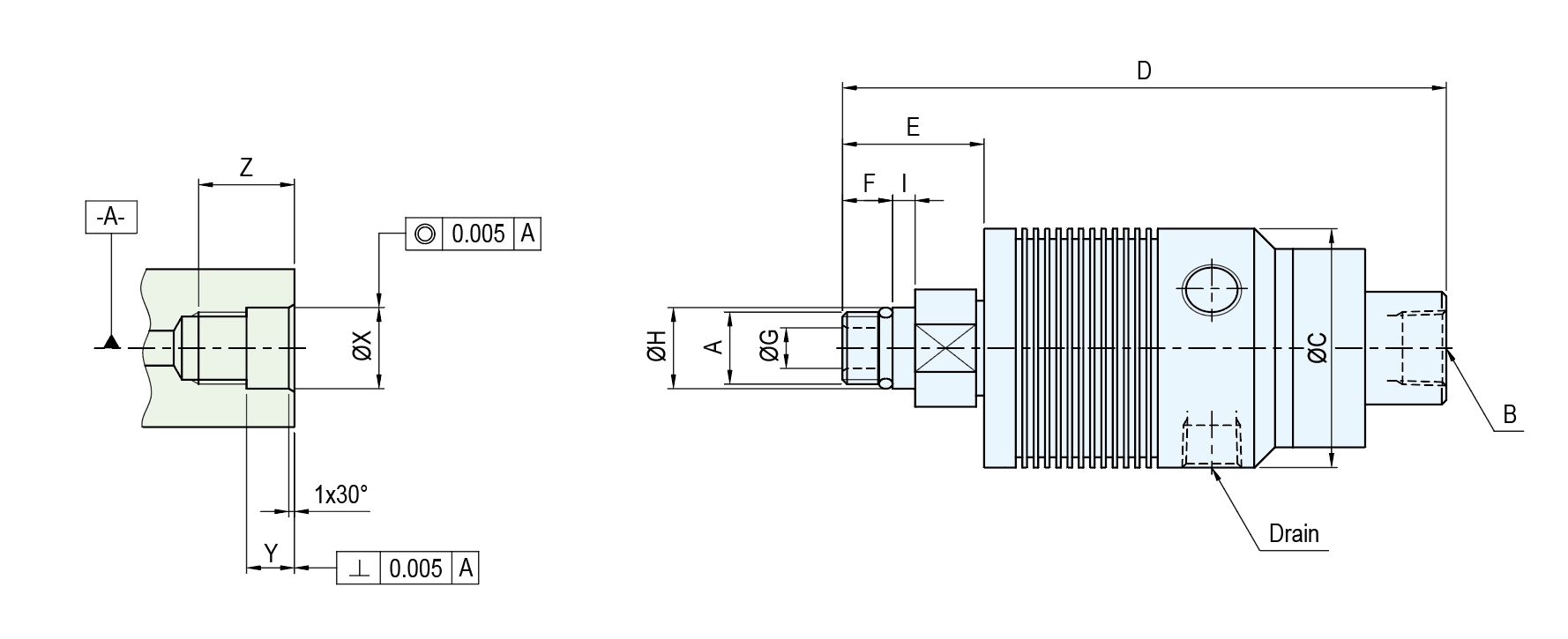

Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| SRJ01-201-01 | M16x1.5 LH | PT 1/4 | 53 | 128.4 | 31.4 | 11 | 8.7 | 17.994 / 17.983 | 5 |
| SRJ01-101-02 | M16x1.5 LH | PT 3/8 | 53 | 128.4 | 31.4 | 11 | 8.7 | 17.994 / 17.983 | 5 |
X | Y | Z | Max. Flow |
|---|---|---|---|
| 18.007 / 17.997 | 8.5 | 19 | 80 L/min |
| 18.007 / 17.997 | 8.5 | 19 | 80 L/min |

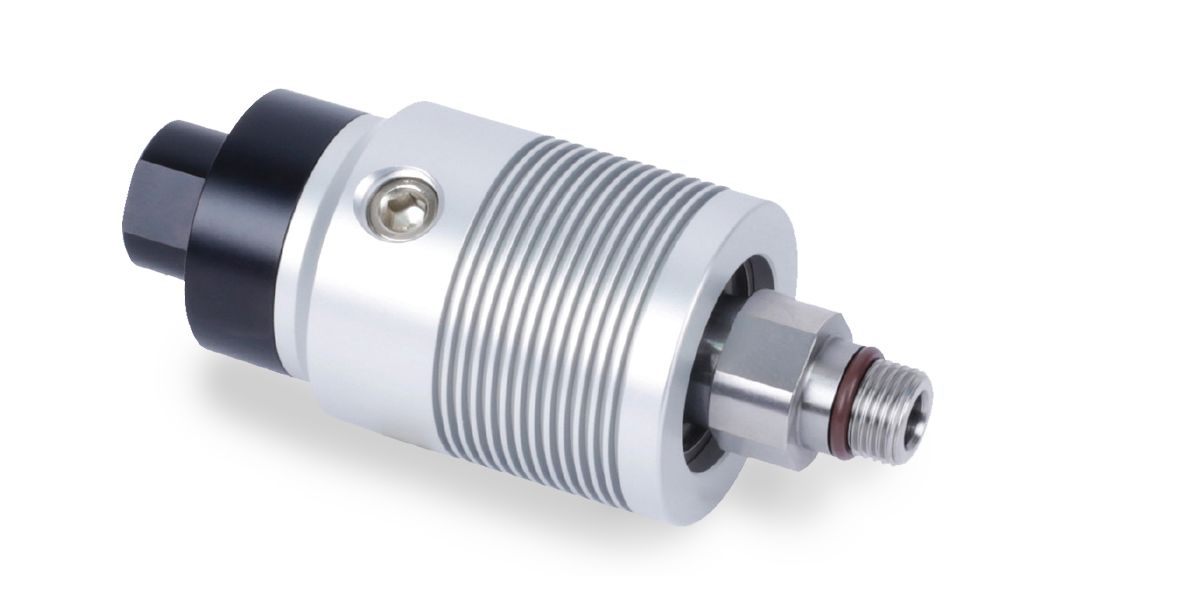

01 SERIES
STANDARD HIGH-PERFORMANCE
SRJ 01-201
์ ํ ํน์ง
Operating Data
๊ตฌ๋ถ | ๋ด์ฉ |
|---|---|
Max. Pressure | 100 bar |
Max. Speed | 20,000 RPM |
Max.Temperature | 70โ |
Max.Flow | 80 L/min |
์ ํ ์ ๋ณด
์ ํ ์ ๋ณด

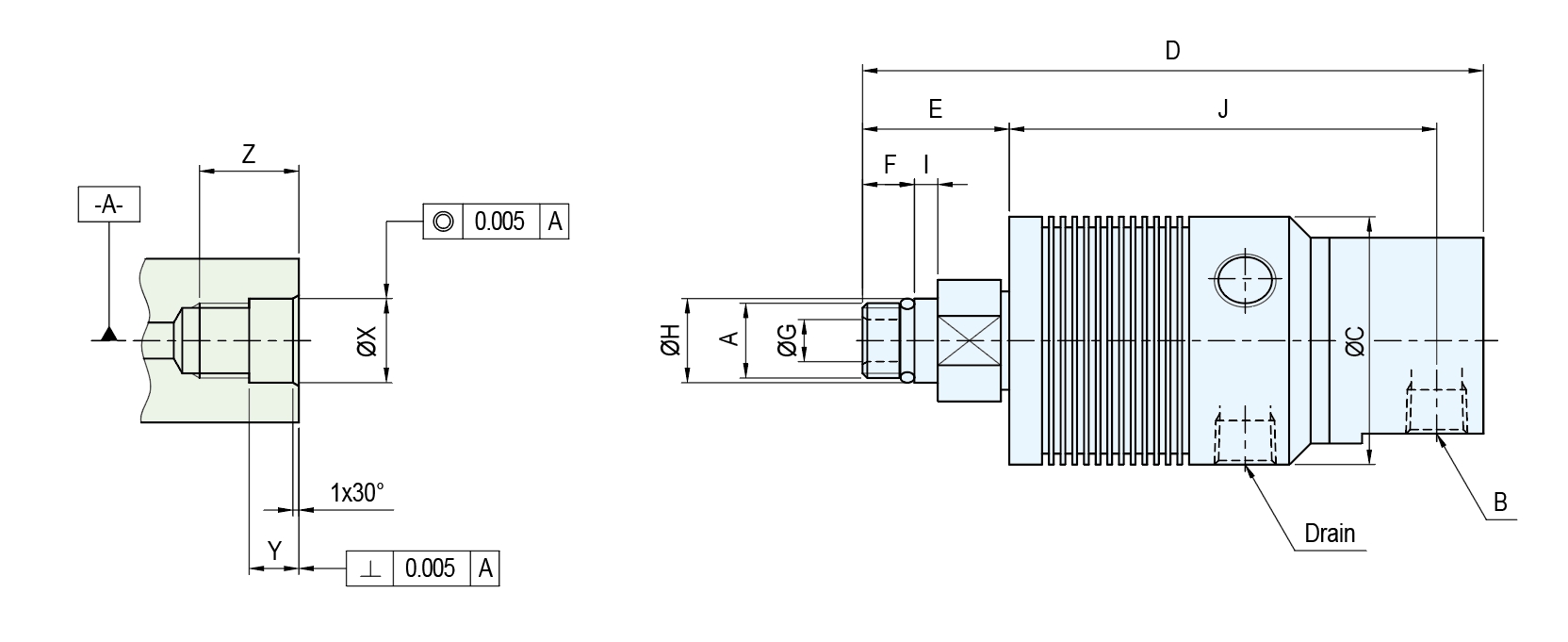

Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| SRJ01-201-11 | M16x1.5 LH | PT 1/4 | 53 | 133.9 | 31.4 | 11 | 8.7 | 17.994 / 17.983 | 5 |
| SRJ01-101-12 | M16x1.5 LH | PT 3/8 | 53 | 133.9 | 31.4 | 11 | 8.7 | 17.994 / 17.983 | 5 |
X | Y | Z | Max. Flow |
|---|---|---|---|
| 18.007 / 17.997 | 8.5 | 19 | 80 L/min |
| 18.007 / 17.997 | 8.5 | 19 | 80 L/min |
