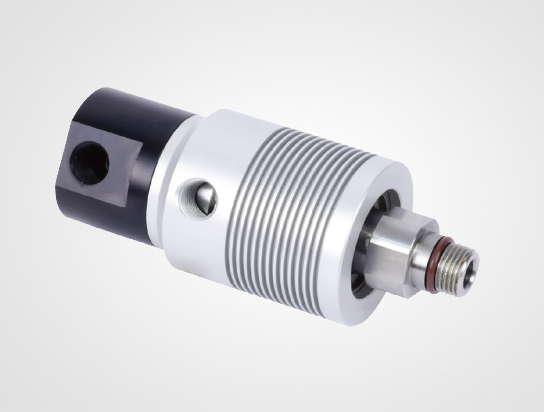

| Integrated type ROTARY JOINT |
|
|
 |
|
 |
ㆍ Available for high speed operating without media, thanks to SKT own developed high quality Seal.
ㆍ Anodizing Aluminum Body.
ㆍ Silicon carbide Seal: long time endurable quality for harsh operating condition
ㆍ Stainless Steel Rotor due to resisting property for corrosion, abrasion, heat and cold condition |
 |
Max. Pressure : 100 bar
Max. Speed : 20,000 min-1
Max. Temperature : 70 ℃
Max. Flow : 24 L/min, 80 L/min |
|
|
|
 |
|
| SRJ 01-201 |

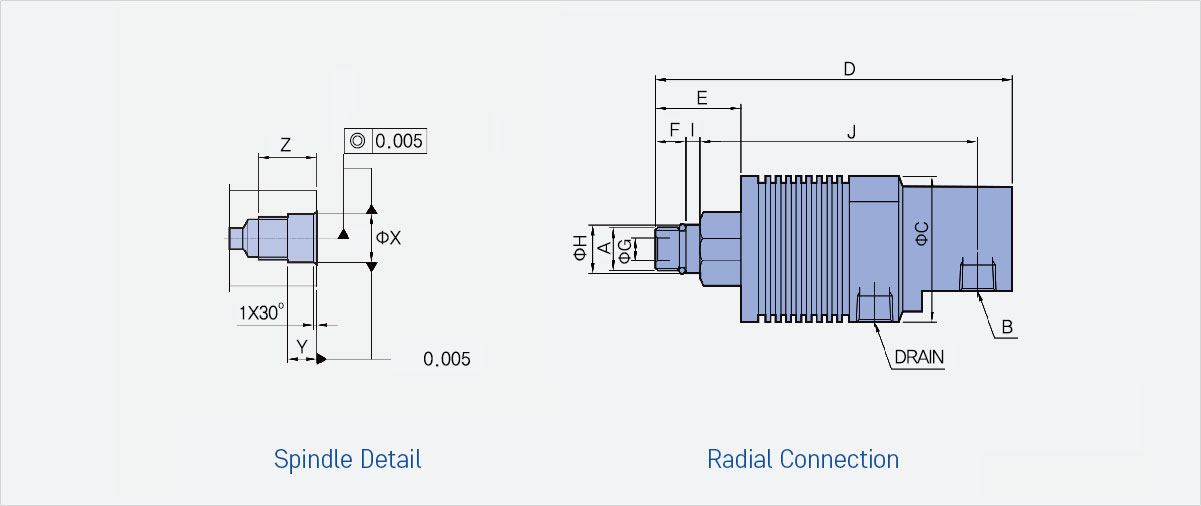

| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
X |
Y |
Z |
Max.Flow |
| SRJ01-201-11 |
M16Ⅹ1.5 LH |
PT 1/4 |
53 |
132.9 |
31.4 |
11 |
8.7 |
17.994 / 17.983 |
5 |
18.007 / 17.997 |
8.5 |
17 |
80 L/min |
| SRJ01-201-12 |
M16Ⅹ1.5 LH |
PT 3/8 |
53 |
132.9 |
31.4 |
11 |
8.7 |
17.994 / 17.983 |
5 |
18.007 / 17.997 |
8.5 |
17 |
80 L/min |
|
|
