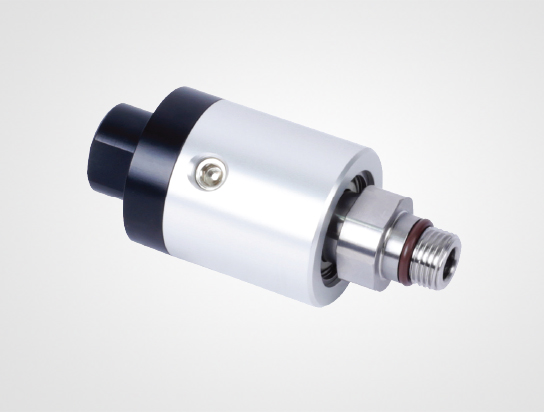

Integrated type ROTARY JOINT
¤ýAvailable for high speed operating without media, thanks to SKT own developed high quality Seal.
¤ýAnodizing Aluminum Body.
¤ýSilicon carbide Seal: long time endurable quality for harsh operating condition
¤ýStainless Steel Rotor due to resisting property for corrosion, abrasion, heat and cold condition.
Max. Pressure : 100 bar
Max. Speed : 7,000 min-1, 15,000 min-1
Max. Temperature : 70 ¡É
Max. Flow : 24 L/min, 80 L/min
SRJ 01-202

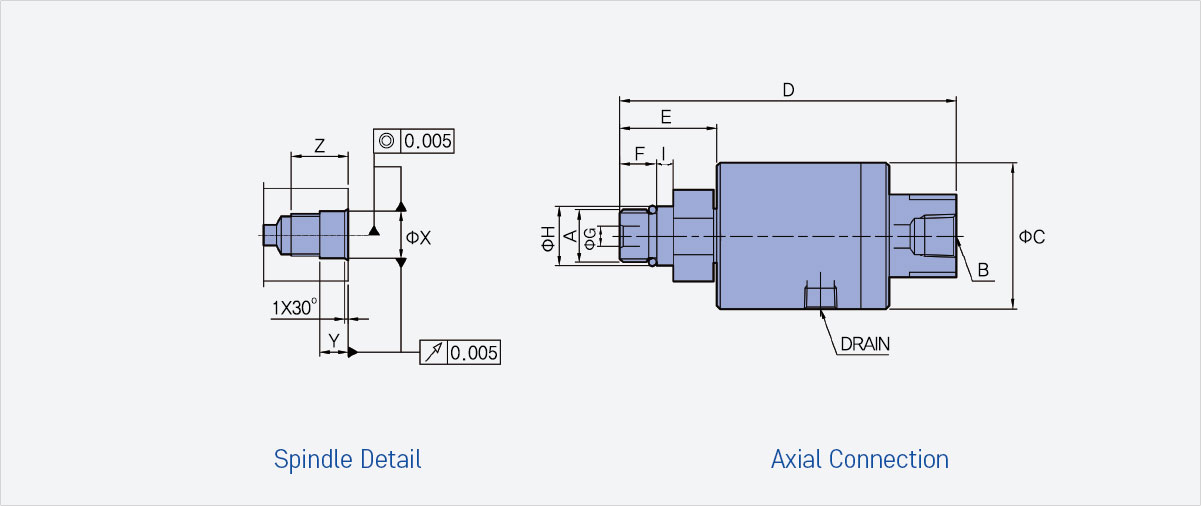

Model A B C D E F G H I X Y Z Max.
Speed
Max.
Flow
Max.
Pressure
Dry
Run
SRJ01-202-01 M16¥¹1.5 LH PT 1/4 44 100.5 29 11 6 17.994 / 17.983 5 18.007 / 17.997 8.5 19 7,000 min-1 20 L/min 100 bar No
SRJ01-202-02 M16¥¹1.5 LH PT 1/4 44 100.5 29 11 6 15.994 / 15.983 5 16.007 / 15.997 8.5 19 7,000 min-1 20 L/min 100 bar No
SRJ01-202-03 M16¥¹1.5 LH PT 3/8 44 100.5 28 11 8.7 15.994 / 15.983 5 16.007 / 15.997 8.5 19 15,000 min-1 80 L/min 100 bar Yes
SRJ01-202-04 5/8-18 UNF LH PT 3/8 44 104.5 33 14 6 16.650 / 16.645 6 16.660 / 16.653 9.5 22 7,000 min-1 20 L/min 100 bar No
SRJ01-202-05 M16¥¹1.5 LH PT 3/8 44 100.5 28 11 8.7 17.994 / 17.983 5 18.007 / 17.997 8.5 19 15,000 min-1 80 L/min 100 bar Yes
