Integrated type ROTARY JOINT Detachable type ROTARY JOINT 2-PORT ROTARY JOINT

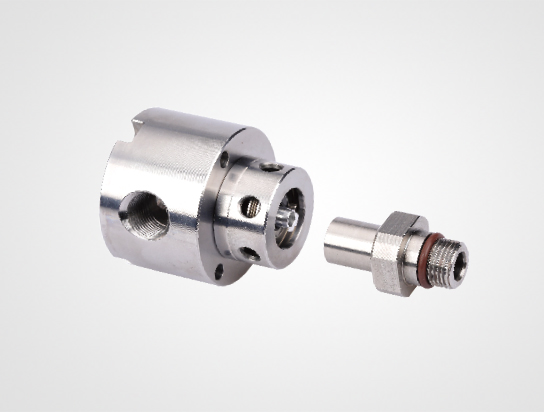

Detachable type ROTARY JOINT
ㆍ Available for high speed operating without media, thanks to SKT own developed high quality Seal.
ㆍ Silicon carbide Seal: long time endurable quality for harsh operating condition
ㆍ Stainless Steel Body and Rotor due to resisting property for corrosion, abrasion, heat and cold condition
Max. Pressure : 100 bar
Max. Speed : 40,000 min-1
Max. Temperature : 70 ℃
Max. Flow : SRJ02-101-11 : 35 L/min / SRJ02-101-12 : 80 L/min

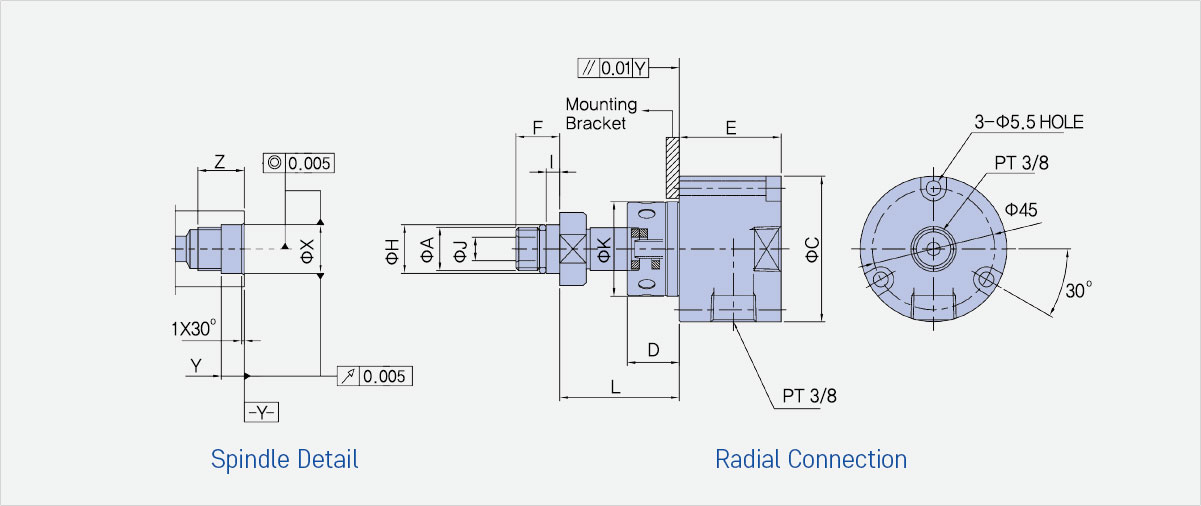

SRJ 02-101
Model A B C D E F H I J K L X Y Z
SRJ02-101-11 M12Ⅹ1.25 LH PT 3/8 54 19 37.5 17 13.994 / 13.983 5 6
35
-0.1
-0.3
38±2.5 14.007 / 13.997 8.5 18
SRJ02-101-12 M16Ⅹ1.5 LH PT 3/8 54 19 37.5 16 17.994 / 17.983 5 8.7
35
-0.1
-0.3
41.5±2.5 18.007 / 17.997 8.5 17
