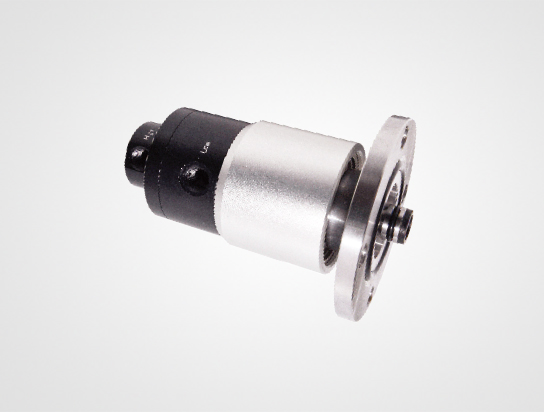

| 2-PORT ROTARY JOINT |
|
|
 |
|
 |
ㆍAvailable for high speed operating without media, thanks to SKT own developed high quality Seal.
ㆍCoolant / Pneumatic Rotary Joint with Two Channels Anodizing Aluminum body.
ㆍStainless Steel Flange type Rotor due to resisting property for Corrosion, abrasion, heat and cold condition. |
 |
Max. Pressure : A port - 70 bar
Max. Pressure : B port - 10 bar
Max. Speed: 7,000 min-1
Media : A port - Coolant, Air
Media : B port - Air
Max. Temperature : 70 ℃
Max. Flow : 70 L/min |
|
|
|

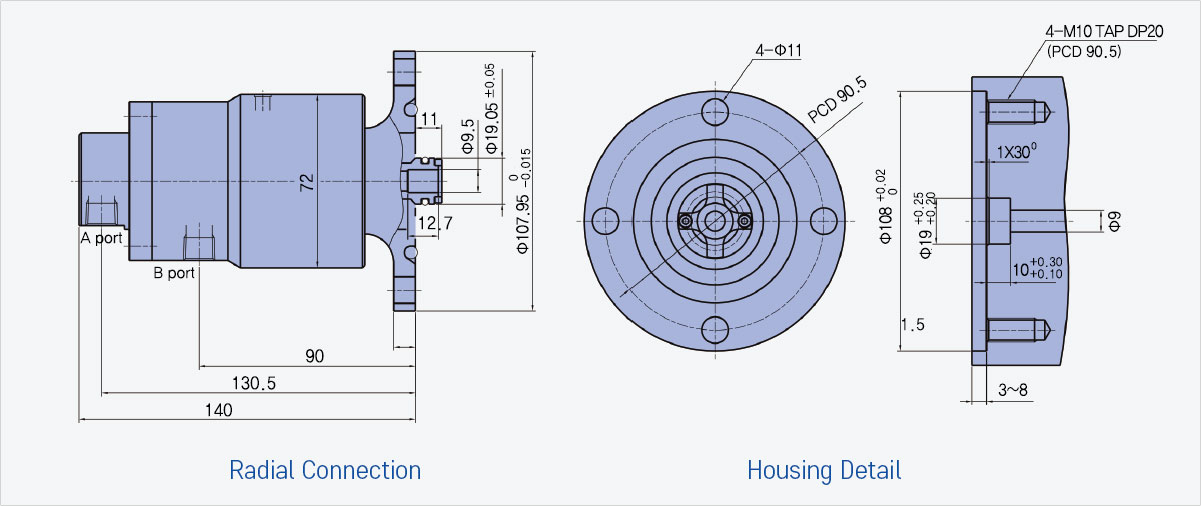

| SRJ 03-101-01 |
 |
|
